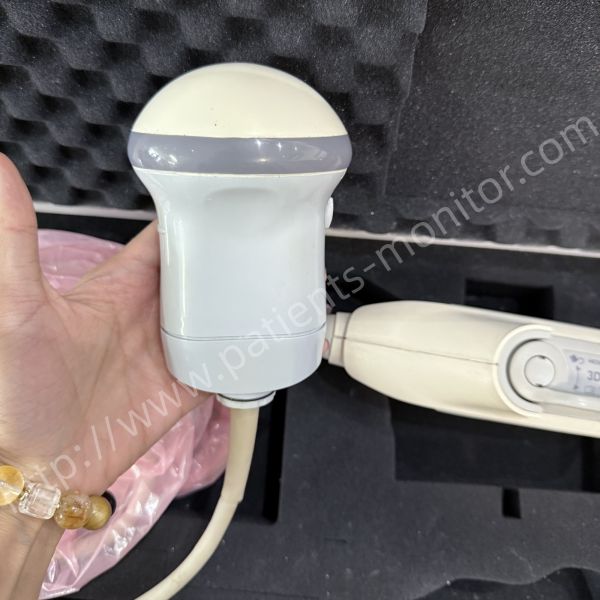

Medison 3D4-8ET Convex Array Probe 3D/4D Curved Array Transducer for Accuvix V10 V20 XQ X8 4 - 8 MHz
Description
Specification:
Brand: Medison
Model: 3D4-8ET
Type: 3D/4D Curved Array
Frequency Range: 4.0 - 8.0 MHz
Compatible: Accuvix V10 V20 XQ X8 Ultrasound Machine
Application: OB/GYN, Abdominal, Obstetrics, Gynaecology, Fetal Heart
The 3D4-8ET is a volume convex array probe, which means it can not only perform traditional two-dimensional (2D) imaging, but also directly acquire three-dimensional (3D) volume data through electronic control and display dynamic four-dimensional (4D) images in real time.
Features:
1. Convex array probe: Combining the deeper penetration of an abdominal probe with the resolution of a high-frequency probe, it is ideal for observing organs over a wide area at depth.
2. Frequency Band:
- Low frequency (~3MHz): Provides excellent penetration and is suitable for late pregnancy, obese patients, or observation of deep pelvic structures.
- High frequency (~8MHz): Provides higher resolution and is suitable for early pregnancy, fine-grained imaging of superficial organs such as the cervix and ovaries.
3. Scanning Modes:
- 2D Mode: Provides high-quality conventional 2D grayscale and color Doppler images.
- M Mode: Used for measuring motion, such as fetal heart rate.
- 3D/4D Mode: Core functionality. Supports static 3D and real-time dynamic 4D imaging.
4. A large electronic deflection volume angle enables acquisition of 3D data of a wider range of fetal face or organs in a single acquisition, reducing stitching artifacts.
| Brand | Medison |
| Application | Accuvix V10 V20 XQ X8 |
| Model | 3D4-8ET |
| Condition | Good |
| Warranty | 90 days |
| Material | Plastic |
| Type | Convex Array |
| Frequency | 4 - 8 MHz |
| Payment | T/T, Western Union, PayPal |
| Delivery | 3-5 days |
Warranty
Warranty period: 90 days
We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.
Delivery Details
Express delivery method: DHL, FedEx, UPS, etc.
Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.
If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.
Quality
Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.
Warning
1. It's must use the correct electrical outlet to avoid damage or malfunction.
2. Try to avoid long-term storage, especially in high temperature and high humidity environments.
3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.
4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.
5. Please keep it away from water and fire.
We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
